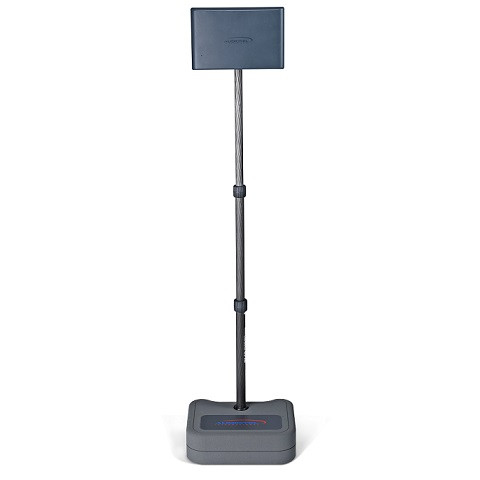

E-Shield Portátil

Sistema de alerta de sinais de RF para salas de reunião

O sistema e-Shield providencia uma solução flexível para manter sua sala de reunião, escritório e áreas publicas seguros de escuta. O sistema alerta quando dispositivos transmitem sinais de Radio Freqüência a partir do lugar de interesse.
O sistema é portátil e compacto e permite uma rápido e fácil desdobramento sem necessidade de infraestrutura especial e treinamento mínimo.

Applications
Securing meeting rooms, office and public areas.
Flexible eavesdropping protection in portable format to move with you as required.
Comprehensive protection against RF eavesdropping
Real time monitoring
24/7 eavesdropping protection

Key Features
Integrated, dedicated sensor to optimise detection of suspicious signals
Detects RF analogue and digital transmissions
Ethernet over mains
Quick and easy to deploy
Compact and portable
Easy to use

Especificações Tenicas

 Wide band (Harmonic) receiver



Frequency Range:

Near DC to 10GHz in 4 bands

Sensitivity Typ:

Better than -50dBm

Dynamic range Typ:

Greater than 50dB

Scan rate:

1 scan per second

Dedicated ISM Band Detectors



Frequency bands:

2.4GHz and 5.8GHz

Sensitivity Typ:

Better than -50dBm

Dynamic range Typ:

Greater than 50dB

Dedicated Mobile Phone Detectors



Frequency bands:

850MHz, 900MHz, 1800MHz, 1900MHz, 1950MHz

Sensitivity Typ:

Better than -50dBm

Dynamic range Typ:

Greater than 50dB

Mechanical



Main unit size:

32 x 24cm Diameter x 130cm Height

Connectivity Ethernet

RJ45 or Powerline

Power Universal input:

110 to 240VAC, 0.5A
