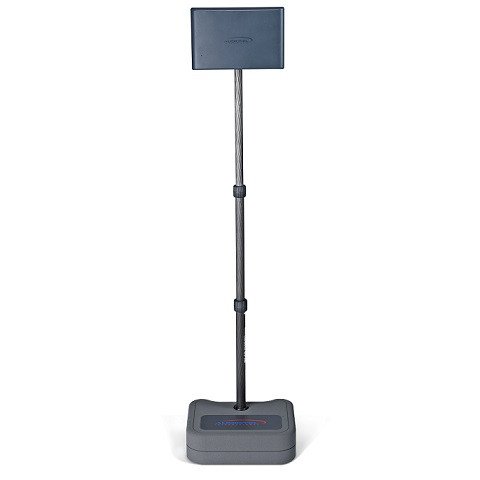

O sistema e-Shield providencia uma solução flexível para manter sua sala de reunião, escritório e áreas publicas seguros de escuta. O sistema alerta quando dispositivos transmitem sinais de Radio Freqüência a partir do lugar de interesse.
O sistema é portátil e compacto e permite uma rápido e fácil desdobramento sem necessidade de infraestrutura especial e treinamento mínimo.
Applications
Securing meeting rooms, office and public areas.
Flexible eavesdropping protection in portable format to move with you as required.
Comprehensive protection against RF eavesdropping
Real time monitoring
24/7 eavesdropping protection
Key Features
Integrated, dedicated sensor to optimise detection of suspicious signals
Detects RF analogue and digital transmissions
Ethernet over mains
Quick and easy to deploy
Compact and portable
Easy to use
Especificações Tenicas
| Wide band (Harmonic) receiver | |
| Frequency Range: | Near DC to 10GHz in 4 bands |
| Sensitivity Typ: | Better than -50dBm |
| Dynamic range Typ: | Greater than 50dB |
| Scan rate: | 1 scan per second |
| Dedicated ISM Band Detectors | |
| Frequency bands: | 2.4GHz and 5.8GHz |
| Sensitivity Typ: | Better than -50dBm |
| Dynamic range Typ: | Greater than 50dB |
| Dedicated Mobile Phone Detectors | |
| Frequency bands: | 850MHz, 900MHz, 1800MHz, 1900MHz, 1950MHz |
| Sensitivity Typ: | Better than -50dBm |
| Dynamic range Typ: | Greater than 50dB |
| Mechanical | |
| Main unit size: | 32 x 24cm Diameter x 130cm Height |
| Connectivity Ethernet | RJ45 or Powerline |
| Power Universal input: | 110 to 240VAC, 0.5A |
